Lecture 18

Andreas Moshovos

Spring 2005



Using Interrupts Continued: Other causes of interrupts and an example of how they can be used to emulate new or unimplemented (in hardware) instructions.

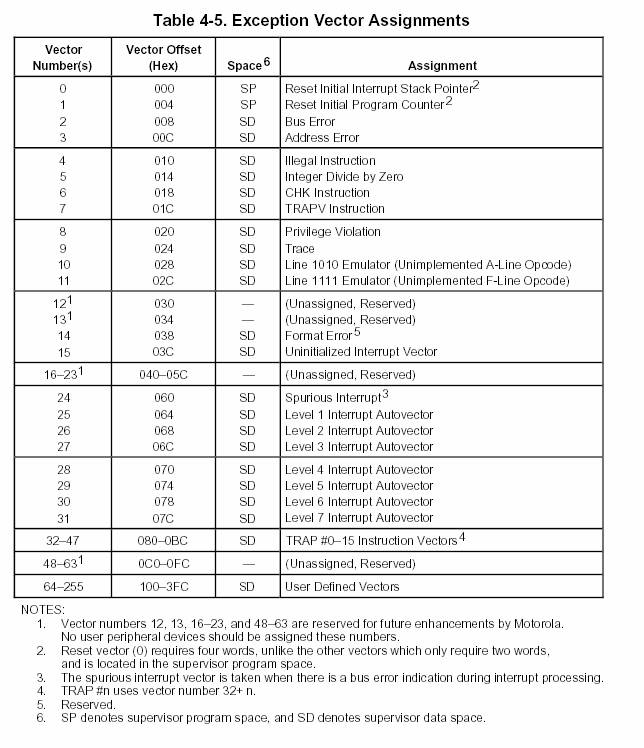

In the previous lecture we have seen how interrupts can be used to communicate with I/O devices. We noted that the interrupts mechanism has a lot more diverse applications. The vector table definition for the 68k points to some of these applications:



For example, we can see that interrupt vector 5 is used whenever a division with zero is attempted. Similarly, vectors 32 through 47 are used whenever the TRAP instruction is executed (the actual vector used depends on the argument to the TRAP instruction). The TRAP instruction is used to implement system calls (that is operating system calls).  Vector 3 is used on an address error, that is whenever an instruction tries to access attempts to access a word or a long word value or an instruction at an odd memory address (misaligned access). The Bus Error exception is used for other purposes (e.g., accessing a portion of memory that is not implemented in a particular design).



Whenever an exception occurs the 68k saves the PC and the SR on the stack, enters supervisor mode and calls the interrupt handler as specified by the appropriate vector.



TRAPs are typically used to implement an operating system. Initially, after reset the system runs in supervisor mode. The operating system which runs at that time runs in the supervisor mode and sets the TRAP vector to point to a known entry point in the OS. Then the first user program is run after the supervisor bit in the SR register is turned off. So, now the user program cannot access everything in the machine. The only way the user program can access devices is through a system call to the OS. TRAPs are used to implement these system calls. The moment the user program executes a TRAP, the OS is invoked using the TRAP vector which it set previously (during the initialization). The moment the TRAP executes, 68k automatically reverts to supervisor mode.  This way the machine mode is temporarily again supervisor while running the OS to service the system call. The moment the OS finishes with the system call, it executes an RTE instruction and hence returns immediately after the TRAP. AT this point however, SR is restored from the stack and hence we are back to supervisor mode.



Emulating non-implemented instructions



As an example of other uses of interrupts we will use vector 10. This interrupt vector is used whenever the CPU attempts to execute an instruction whose opcode is of the form $Axxx (recall, every 68k instruction is at least two bytes long and note that no 68k instruction is of the form $Axxx).



This interrupt can be used to emulate in software instructions that are not really implemented in hardware. Once our interrupt handling routine is written, the emulated instruction can be used as if it was implemented in the CPU.

For example, it used to be the case that one could get 80386 which implemented the integer subset of the x86 instruction set in hardware (80386 is P4’s grand-grand-“father”). The x86 instruction set, however, included instructions for floating point numbers too. To get hardware for those you had to get the 80387 processor which was a co-processor that worked in tandem with 80386. If you didn’t have the 80387 you could always use interrupts to emulate these instructions in software and still run programs that used them (albeit a lot more slowly than they would run if you had 80387). The same was true of 68000. There was a floating-point coprocessor one had to get separately to have floating-point instructions run in hardware.



As an example we will implement the instruction “bitcount.l Dx”. This is not a 68K instruction. We are defining it.

It takes a single argument which is a D register and counts the number of bits that are 1 in Dx. It operates only on long words and the result is written back into Dx.



Before we emulate the instruction let’s decide on an encoding for it. We will use:



%1010 0000 0000 0ddd



where ddd forms a three bit number which indicated the D register this instruction is using.

So, %1010 0000 0000 0101 encodes “bitcount D5” and %1010 0000 0000 0111 encodes “bitcount D7”.



The only important consideration here is that no other valid 68k instruction uses the same encoding.



Here’s the assembly code for the interrupt handler:



            org       $28

            dc.l      bitcount           ; initialize interrupt vector to point to our interrupt handler

                                                ; may need to define one more vector (can’t test it to double check)

                                                ; on the simulator I did have to define another vector too but I believe that the simulator is wrong



            org       $25000

bitcount

      movem.l     a1/a0/d0-d7,-(a7) * save registers we will be touching and all D registers

                                    * on the stack we have starting from the top: D0 – D7, A0, A1

      move.l      42(a7),a0         * get PC of excepting instruction

                                    * we have to add 10 x 4 bytes for the saved regs

                                    * +2 for the SR (recall this is an exception)

                                    * SEE FIGURE (+++) BELOW FOR THE STACK

      clr.l d1

      move.w      (a0),d1           * get actual opcode in d1

                                    * so d1 (word) should be in the form %1010 0000 0000 0ddd



      and.w #$0007,d1               * get register index in d0

      lsl.l #2,d1                   * convert d1 into a long word table index

                                    * alternatively we could write add.l d1, d1 twice



      move.l      a7, a0            * copy stack pointer into a0

      adda.l      d1, a0            * get the address of the i-th element as indicated by d1

                                    * notice that the D registers are stored one after the other on the

                                    * other on the stack effectively forming and array

      move.l      (a0), d0          * read into d0 the value of the source operand register



      clr.l       d1                * count = 0

nonzero

      tst.l       d0                * if value == 0 then we are done, tst just sets the condition codes

                                    * to reflect the value in D0 (if it’s zero, negative, etc.)

      beq         zero



      btst.l      #0, d0            * if bit 0 of value is 0 do not increase count

      beq         bitzero



      addq.l      #1, d1            * bit 0 of value is 1 increment count



bitzero

      lsr.l       #1, d0            * shift value right by 1 bit

      bra   nonzero                 * continue this process until value becomes 0



zero

      move.l      d1, (a0)          * modify the appropriate Di saved value on the stack so that it will

·           change when all D registers are restored

      movem.l     (a7)+, a1/a0/d0-d7      * restore registers, this will also now change the D register

                                    * that was the destination of the bitcount instruction



      addq.l      #2, 2(a7)         * increment the saved PC by 2 as if the instruction was executed



      rte



* here’s a piece of code that uses the new instruction



bitcount           EQU    %1010 0000 0000 0000



            org       $20000

main

            move.l #55, d1

            dc.w    bitcount + 1     * amounts to %1010 0000 0000 0000 + 1 or bitcount D1

            move.l #55, d6

            dc.w    bitcount + 6     * amounts to %1010 0000 0000 0000 + 6 or bitcount D6



FIGURE (+++) HOW THE STACK LOOKS LIKE BEFORE THE FIRST MOVEM INSTRUCTION:

(WORD) Top of the stack

Value of SR

(LONG WORD) +$2

Return Address











The return address is the address of the instruction that caused the interrupt. This is because this is an illegal instruction. For a device interrupt the return address would have been the one of the instruction that will execute next once the interrupt handler exits.



FIGURE (+++) HOW THE STACK LOOKS LIKE AFTER THE FIRST MOVEM INSTRUCTION:

Top of the stack

Value of D0

+$4

Value of D1

+$8

D2

+$C

D3

+$10

D4

+$14

D5

+$18

D6

+$1C

D7

+$20

A0

+$24

A1

(NOTE THIS IS A WORD) +$28

Value of SR

(THIS IS A LONG WORD) +$2A

Return Address











Note that the top of the stack is different the two preceding figures. The top of the stack of the first figure is at distance +$28 from the top of the stack of the second figure.



We use dc.w to specify the bitcount instructions since this is not an actual 68k instruction. The assembler does not understand what “bitcount.l” means. So, we have to explicitly do the translation to the binary encoding used by 68k (which we decided also).

When 68k tries to execute any of the dc.w words as instructions it will find that it knows nothing about them since they do not correspond to any valid instruction. It will then raise on its own the illegal opcode interrupt and hence run our interrupt handler. The interrupt handler will then emulate the behavior of bitcount and hence to a programmer it would look as if bitcount is an actual instruction.



Note that I have tested this code on a simulator of 68k.



Optimized implementation (you are not responsible for this material for any of the exams):



There is a way of calculating the bit count of a binary value very quickly. Can you analyze the following code and show why it works (differences with previous implementation in bold)?

This is more of a trick than a concept but many things about computers are about experience. The more tricks you know the better you are equipped to meet future challenges.

This code is given for your “benefit” and is not part of the material you are responsible for.
