Lecture 19.1

Andreas Moshovos

Spring 2007





Modifying the Single-Cycle CPU Implementation



What if we decided to change the definition of the ADD instruction as follows. Instead of ADD R1 R2 we want to have ADD R1 (R2). The new ADD replaces the previous one. So the encoding remains:

ADD

7

6

5

4

3

2

1

0

R1

R1

R2

R2

0

1

0

0



However, the instruction now performs the following actions:



ADD R1 (R2)

     TMP = MEM[R2]

     TMP = R1 + TMP

     R1 = TMP

IF (TMP == 0) ZERO = 1; ELSE ZERO = 0;

IF (TMP < 0) NEGATIVE = 1; ELSE NEGATIVE = 0;

     PC = PC + 1



What needs to change in the datapath and control?



Datapath Modifications



Recall that the datapath should be able to perform all the actions necessary by any instruction. So what are the actions necessary for the new ADD instruction?



  1. We must be able to read an instruction from memory using the PC as the address
  2. We must be able to use field “R2” from the instruction to specify a register to read from.
  3. We must be able to use the value read from the register file in step 2 and use it from memory to read a byte.
  4. We must be able to use field “R1” from the instruction to specify a register to read from.
  5. We must be able to add the values read in steps 3 and 4.
  6. We must be able to use field “R1” from the instruction to specify a register to write into the value generated in step 5.
  7. We must be able to update Z and N according to the value produced in step 5.
  8. Must be able to read PC, add 1 and write the result PC+1 back into the PC.

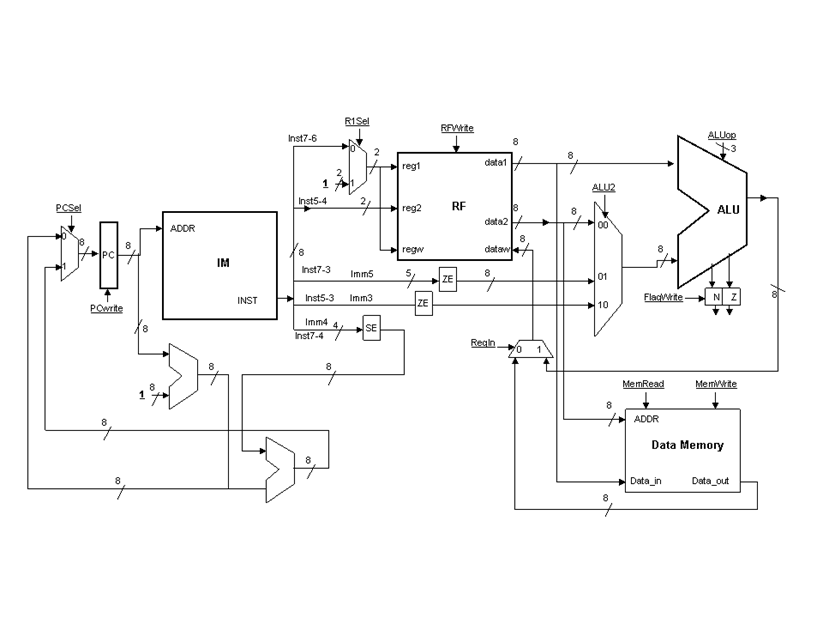

Here’s the datapath we designed thus far:





Let’s see which of the 8 actions this datapath can’t do. It can’t do 5. Everything else is possible. So, at the end what is needed is a way of passing the value read from memory as the second input to the ALU.

Here’s the modified datapath:





Control Modifications:



Since we only changed the ADD instruction we need to change the row for the ADD instruction only. Note that the meaning of some control signals is different here compared to the previous lecture. RFin 1 means pass the value of the ALU to the register file, and RFin 0 means pass the value of the Data Memory.





INSTRUCTION

Inputs

Outputs



INST0-3

N

Z

PCSel

PCWrite

RegWrite

MemRead

R1Sel

MemWrite

ALU2

RFin

ALUop

ADD

0100

X

X

0

1

1

1

0

0

11

1

000
