The configuration module performs the startup configuration for both audio and video decoder chips. It is needed if you are using the audio controller or the video-in controller.
This document will describe the interface and parameters of the configuration module.
You can download the source code (in Verilog) here.

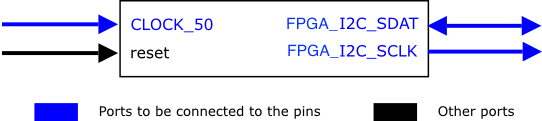

The module interface is illustrated in Figure 1, “Module interface”, with inputs shown on the left, outputs and bidirectional lines on the right. Ports are used as follows:
CLOCK_50
- system clock input, must be 50MHz for the timing control to work properly.
reset
- the active-high reset.
FPGA_I2C_SDAT
and FPGA_I2C_SCLK
-
off-chip lines to be connected to the correspondingly named pins, as defined in the DE1_SoC.qsf file.
USE_MIC_INPUT
- Select the audio source: 0 to select Line-in, 1 to select Microphone.
The configuration module performs the configuration for both the audio and video chips using the same data bus. The default parameters are hard coded into the module, and described in the audio controller and the video-in controller documentation. The default parameters will be acceptable for most users, and therefore the understanding or modification of the configuration module is not required.
